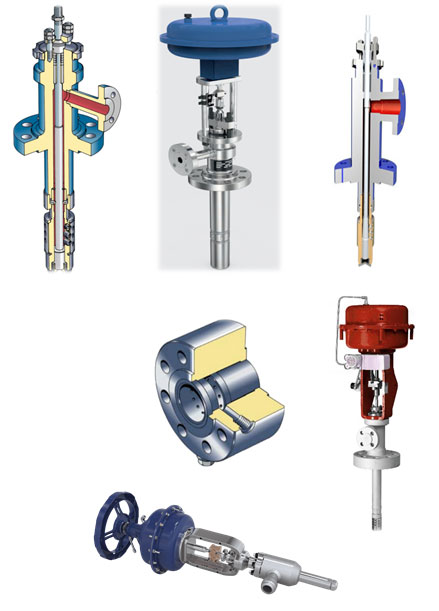

Purpose: The primary function of a desuperheater is to lower the temperature of superheated steam or other vapors. This temperature reduction is accomplished as a result of the process vapor being brought into direct contact with another liquid such as water.

Application: Suitable to all temperature control applications

Size Range: 6" and above

Class Rating: ANSI 150 ~ ANSI 4500

Material Grade: WCB, WCC, A105, WC6, WC9, F11, F22 , F91, F92, F316, Duplex, super duplex.

Technical Specification:

• Variable Spray Nozzle - 12 spray nozzles spaced for optimum dispersion in the steam flow
• Large range of design Cv options
• High rangeability
• Superior Pressure 1 bar to 50 bar (15psi to 740psi)
• Nozzle Rangeability – up to 40:1
• Interchangeable nozzles
• Accurate control of steam temperatures without water droplet damage to pipe walls
• Swirl chambers and conical nozzles for optimum atomisation
• Simple low cost inline maintenance
