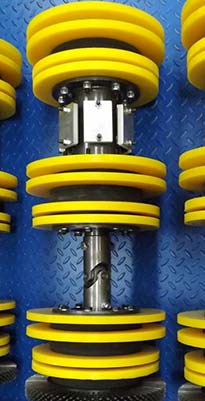

Articulated Pigs

• Articulated pigs are typically designed to pass pipeline wye connections whilst also negotiating tight bend radii.
• They are also used to pass oversized features (such as ball valves or connector hubs).
• This type of pig is also highly efficient in long run dewatering/flooding operations as well as dual-diameter applications.
• Standard Features
  • Metallic parts from Carbon Steel or Stainless Steel (High Tensile Bolts c/w Locking Nuts)
  • Articulation joints using high tensile wire plus polyurethane spacer joint or universal-type
  • Pigging Discs – High Grade Polyurethane Elastomer (4 x Sealing Disc and 2 x Guiding Disc minimum)
  • Polyurethane Bumper Noses c/w Bypass SlotsCan be disc, cup or wheeled support type
  • Minimum Bend Radius 3D minimum (1.5D specials available)

Cup Pigs & Conical Cup Pigs

• The standard cup includes a rigid shoulder design for increased cleaning efficiency whereas the conical cup has a more streamlined design that allows for long runs and much-increased wear life.
• The cup pig design is provided with 2, 3 or 4 cups and can be further enhanced with the addition of guide discs, for increased cleaning efficiency.
• Propipe has a reputation for reliability and expertise and excels in pig design for difficult pipelines.
• Standard Features
  • Standard Cup for short runs (>100km) / Conical Cup <100km
  • Metallic parts from Carbon Steel or Stainless Steel (High Tensile Bolts c/w Locking Nuts)
  • Pigging Cups - High Grade Polyurethane Elastomer (2 to 4 cup configurations)
  • Polyurethane Bumper Noses c/w Bypass Slots
  • Bore Passing Up to 20% bore restrictions
  • Minimum Bend Radius 3D minimum (1.5D specials available)

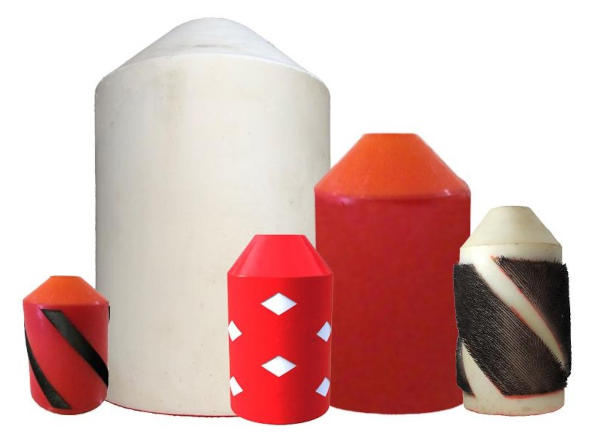

Foam Pigs (Light, Medium & high Density)

• Cost-effective single-use pigs for multiple applications and contingency operations
• Foam pigs are used for a wide variety of applications, such as for flooding, dewatering and drying, as well as cleaning, gauging and batching operations.
• Foam pigs can also be used for proving pipelines suitability for pigging with less flexible pig types such as metal bodied pigs
• Sizes ranging from 1/2″ to 90″ and these are custom-made to order.
