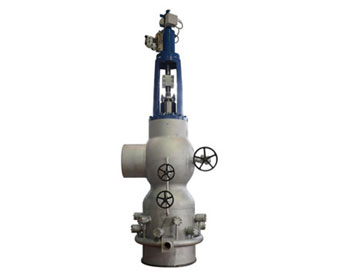

Purpose: The purpose of the turbine bypass system is to rapidly dump steam to the condenser in the event of a turbine trip, or to bypass the turbine during startup or commissioning.

Size Range:

• Inlet: 1 1/2" ~ 20"
• Outlet: 1 1/2" ~ 40"

Class Rating: ANSI 150 ~ ANSI 4500

Material Grade: WCB, WCC, A105, WC6, WC9, F11, F22 , F91, F92, F316, Duplex, super duplex.

Technical Specification:

• Pressure Boundary Integrity
• Leakage Minimized
• Low Stress Configuration
• Fully Serviceable Trim
• Customized Desuperheating
• Variable Geometry Nozzles
• Noise reduction
• Water Injection
• Co-ordinated Control Surfaces
• Hardened Surfaces
• Low Noise Trim
• Trim Arrangement
