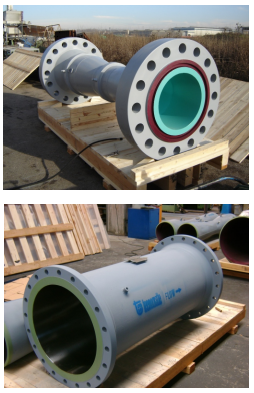

Venturi Tubes are used for measurement of flows when is important to keep the net pressure permanent loss at a minimum They are noted for their long life, their flow coefficient stability, and their ability to provide a dependable relationship between differential pressure and fluid velocity. They return from 75% up to 95% of the velocity head depending on diffuser outlet cone angle.
Standard AISI 316 Stainless Steel, CS, Alloy
Other materials to request.
Types of Construction
Venturi Tube By Plate With Flanged Throat
Venturi Tube By Bar-Stock
Venturi Tube By Plate (Long Type)
When requested , flow calculations can be made for determining
bore diameter according to ISO 5167-2 : 2003
