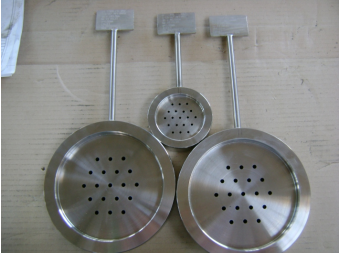

Orifice Plates

Accurate workmanship and high quality of finishing distinguishes TM orifice plates. Specially built up-todate machinery ensures calibrated bore with burr free sharp edge & smooth ground upstream and downstream faces.

Technical specifications
Materials
Standard AISI 316 Stainless Steel for immediate delivery.
Other materials to request Types

Types
Concentric with sharp Edge, 45° Bevel, quartercircle,
conical entrance, eccentric type, segmental type, etc.

Construction
In accordance with AGA-ASME reccomendations.

Flow calculations
When requested , flow calculations can be made for determining bore diameter according to ISO 5167-2 : 2003, ASME 3M (2004), ANSI 2530/AGA-3/API – Ch.14
