TMEIC (Toshiba Mitsubishi Electric Industrial System Corp.), Japan

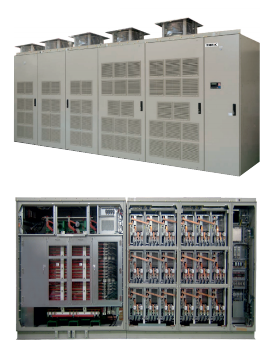

• Type: TMdrive-MVG2
• The TMdrive-MVG2 is a medium voltage, AC fed drive designed for high-efficiency and power-friendly operation in a broad range of industrial applications.
• High reliability, low harmonic distortion, and high power factor operation are designed into the drive
• 3.3 – 11 kV, up to 19500kVA
• Multi-pulse converter rectifier and phase shifted transformer:
• 3.3 kV Class: 18 pulse
• 6.6 kV Class: 30/36 pulse
• 10 kV Class: 48 pulse
• 11 kV Class: 54 pulse
• Applications - The TMdrive-MVG2 is designed for a wide range of industrial applications, including: Centrifugal pumps, fans, and compressors, screw compressors, blowers, refiners, mixers, extruders, conveyors, press machines, slurry pipelines, and mills.
